Spring Cloud (MSA) - Config Server



마이크로 서비스 개발 시작



Dynamic Scaled Up And Down

• Naming Server (Eureka)
• Ribbon (Client Side Load Balancing)
• Feign (Easier REST Clients)



Visibility And Monitoring

• Zipkin Distributed Tracing
• Netflix API Gateway



Ports

ApplicationPort

Application	Port
Limits Service	8080, 8081, ...
Spring Cloud Config Server	8888
Currency Exchange Service	8000, 8001, 8002, ..
Currency Conversion Service	8100, 8101, 8102, ...
Netflix Eureka Naming Server	8761
Netflix Zuul API Gateway Server	8765
Zipkin Distributed Tracing Server	9411





URLs

Application	URL
Limits Service	http://localhost:8080/limits http://localhost:8080/actuator/refresh (POST)
Spring Cloud Config Server	http://localhost:8888/limits-service/default http://localhost:8888/limits-service/dev
Currency Converter Service - Direct Call	http://localhost:8100/currency-converter/from/USD/to/INR/quantity/10
Currency Converter Service - Feign	http://localhost:8100/currency-converter-feign/from/EUR/to/INR/quantity/10000
Currency Exchange Service	http://localhost:8000/currency-exchange/from/EUR/to/INR http://localhost:8001/currency-exchange/from/USD/to/INR
Eureka	http://localhost:8761/
Zuul - Currency Exchange & Exchange Services	http://localhost:8765/currency-exchange-service/currency-exchange/from/EUR/to/INR http://localhost:8765/currency-conversion-service/currency-converter-feign/from/USD/to/INR/quantity/10
Zipkin	http://localhost:9411/zipkin/
Spring Cloud Bus Refresh	http://localhost:8080/actuator/bus-refresh (POST)



---



Spring Cloud

마이크로서비스의 개발, 배포, 운영에 필요한 아키텍처를 쉽게 구성할 수 있도록 지원하는. Spring Boot기반의 프레임워크

• Ribbon 대신 Spring Cloud LoadBalancer 사용
• Zuul 대신 Spring Cloud Gateway 사용

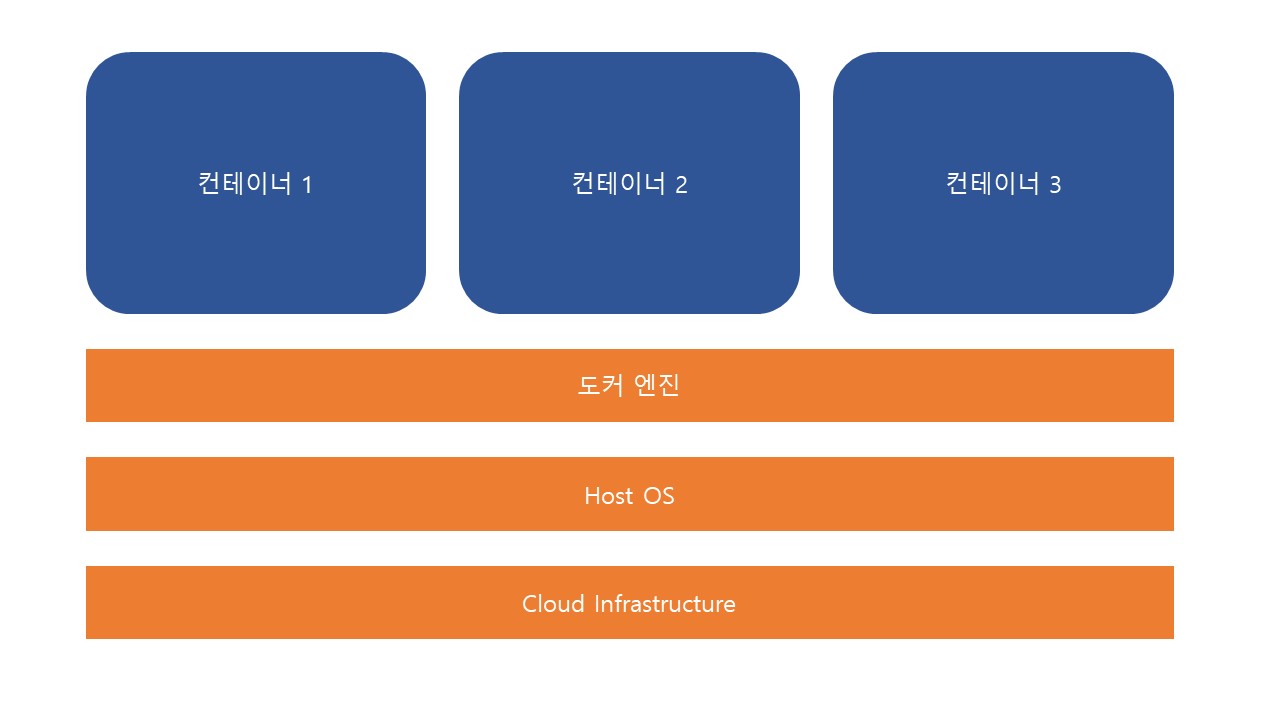

도커 사용 예

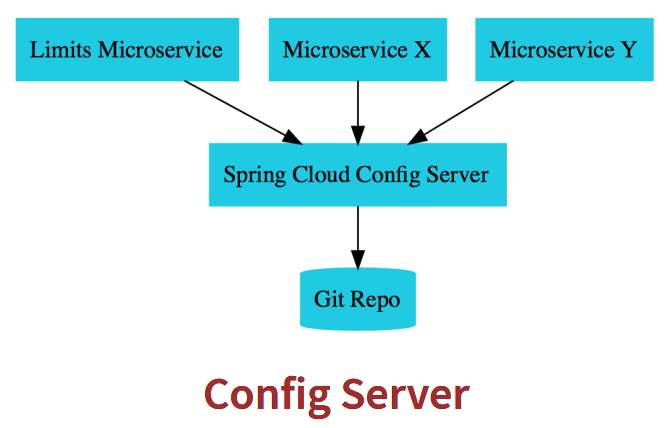

Config Server 연습



Start Spring Cloud Config Server

Dependencies

• Spring Boot Dev Tools
• Config Server

application.properties

spring.application.name=spring-cloud-config-server
server.port=8888
spring.cloud.config.server.git.uri=file:///c:/Users/Admin/Desktop/Main/dev/spring/newSpring/SpringMSA/git-localconfig-repo





깃 생성

mkdir git-localconfig-repo
cd git-localconfig-repo
git init

git add *
git commit -m "adding limits-service.properties"

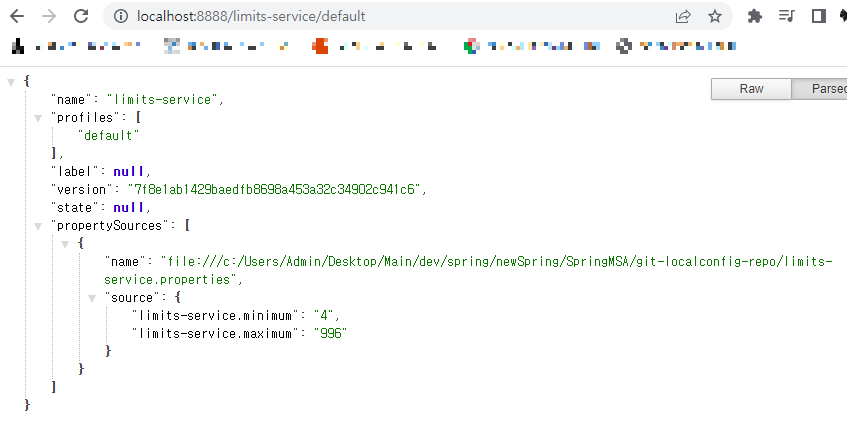

Config Server에서 조회

중요한 점

• git repo 에 생성된 properties 파일명이 Config Server 명(limits-service)이 된다.





---





Limits Microservice

Limits

public class Limits
{
    private int minimum;
    private int maximim;

    public Limits() {
    }

    public Limits(int minimum, int maximim) {
        this.minimum = minimum;
        this.maximim = maximim;
    }

    public int getMinimum() {
        return minimum;
    }

    public void setMinimum(int minimum) {
        this.minimum = minimum;
    }

    public int getMaximim() {
        return maximim;
    }

    public void setMaximim(int maximim) {
        this.maximim = maximim;
    }
}



Configuration

@Component
@ConfigurationProperties("limits-service")
public class Configuration
{
    private int minimum;
    private int maximum;

    public int getMinimum() {
        return minimum;
    }

    public void setMinimum(int minimum) {
        this.minimum = minimum;
    }

    public int getMaximum() {
        return maximum;
    }

    public void setMaximum(int maximum) {
        this.maximum = maximum;
    }
}



LimitsController

@RestController
public class LimitsController
{
    @Autowired
    private Configuration configuration;

    @GetMapping("/limits")
    public Limits retrieveLimits()
    {
        return new Limits(configuration.getMinimum(), configuration.getMaximum());
    }

}



application.properties

spring.application.name=limits-service
spring.config.import=optional:configserver:http://localhost:8888

limits-service.minimum=3
limits-service.maximum=997

• git repo 에 생성된 properties 파일명이 Config Server 명(limits-service)이 된다.
• config server  url 등록

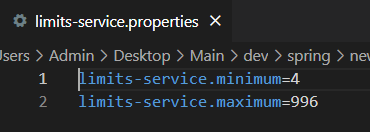

git repo에 있는 limits-service.properties 를 읽어온다.



config server 페칭

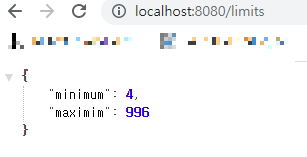

limits-service 실행





profile 변경

repo에 dev, qa 추가



spring.application.name=limits-service
spring.config.import=optional:configserver:http://localhost:8888

spring.profiles.active=dev
spring.cloud.config.profile=dev
#spring.cloud.config.name=

limits-service.minimum=3
limits-service.maximum=997

limits-service의 profile과

config의 profile을 dev로 설정





limits-service 실행시 profiles 가 dev로 설정됨



Config Server

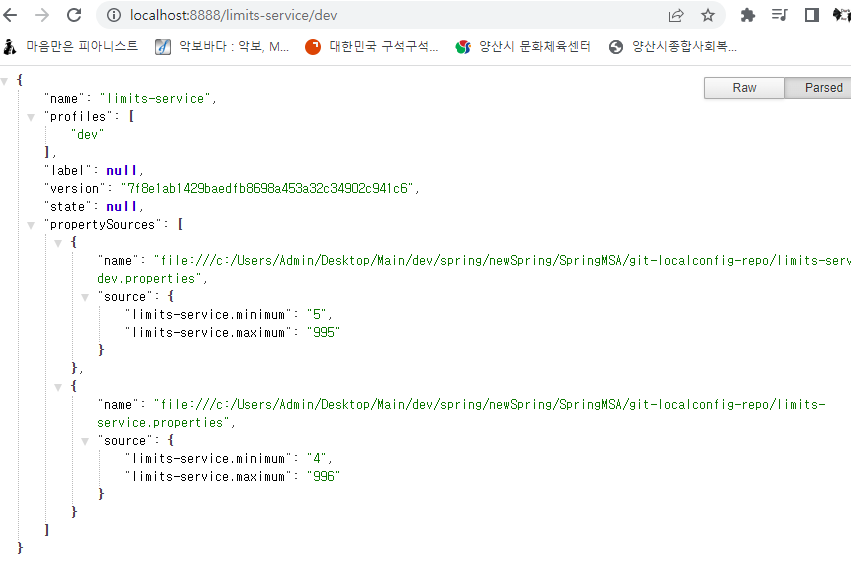

http://localhost:8888/limits-service/dev

dev properties 확인 가능
